Picture this: you're mid-boss-fight, the music swells, you're one hit away from victory—and your controller dies. You scramble to the drawer, fumble through the chaos, and pull out… a handful of AAA batteries that don't fit. Sound familiar?
It's a scenario I've lived through more times than I care to admit, and it's exactly why I'm writing this guide. The question of what batteries does an Xbox One controller take seems simple, but the answer branches into a surprisingly deep decision tree. Let me save you the drawer-rummaging frustration and give you the definitive answer, plus everything you need to know to make the right choice for your setup.
Xbox One Controller Battery Type: The Short Answer
Here's the deal: every standard Xbox One, Xbox One S, and Xbox One X controller uses two AA (LR6) batteries. That's it. No proprietary cells, no special adapters—just good old-fashioned double-A batteries, the same ones you'd use in a TV remote or a wall clock.
The battery compartment on the back of the controller is designed specifically for AA-sized cells. You'll see two slots, each clearly marked with positive (+) and negative (−) indicators. Pop the batteries in, slide the cover back on, and you're ready to game.
AA (LR6) Batteries: The Standard
The "LR6" designation is the official IEC name for what we commonly call AA alkaline batteries. When Microsoft designed the Xbox One controller, they made a deliberate choice to stick with this universal standard rather than building in a sealed battery like Sony did with the DualShock 4.
Why? Because it gives you options. You can use cheap disposables in a pinch, invest in high-quality rechargeables, or buy the official Play & Charge Kit. The flexibility is genuinely nice, even if it means you occasionally find yourself staring at a dead controller at 2 AM.
Why AAA Batteries Don't Fit
I get asked this constantly: "Can you use AAA batteries in an Xbox One controller?" The answer is a firm no, and it's not a software limitation—it's pure physics.
AAA batteries are significantly smaller than AAs. A standard AA battery measures about 50mm in length and 14mm in diameter, while a AAA is roughly 44mm long and 10mm in diameter. That might not sound like much, but in a compartment designed for AA dimensions, those few millimeters mean the smaller batteries simply won't make proper contact with the terminals.
I've seen people try to wedge AAA batteries in with foil or paper to fill the gap. Don't do this. It's a quick way to damage the contact points or, worse, cause a short circuit. If you only have AAAs on hand, you're better off plugging the controller in with a micro USB cable and playing wired until you can get proper batteries.
Best Batteries for Xbox One Controller: Alkaline vs. Rechargeable
Now that we've established the baseline, let's talk about your actual options. This is where the decision gets interesting, and where your gaming habits should dictate your choice.

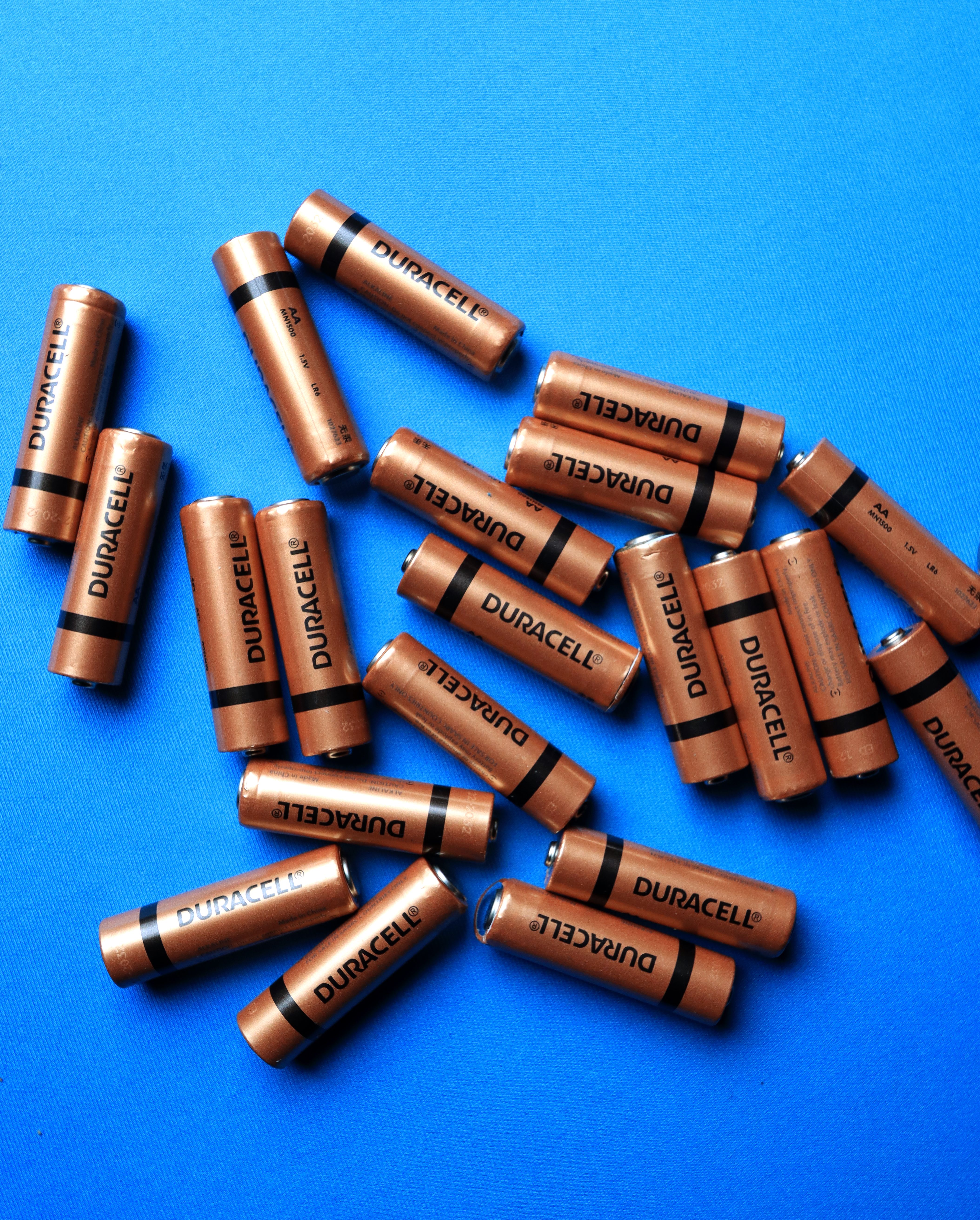

AA Alkaline Batteries: Pros, Cons, and Expected Battery Life
Standard AA alkaline batteries are the most accessible option—you can find them at any grocery store, gas station, or convenience store. They're cheap upfront, typically costing $0.50 to $1 per battery when bought in bulk.
In my testing, a fresh pair of quality alkaline AAs will give you roughly 20 to 30 hours of gameplay, depending on how much you use vibration and whether you're using the headset jack. That's a solid week or two of casual gaming, or a long weekend if you're really grinding.
The downsides are obvious: ongoing cost and environmental waste. If you're gaming regularly, you'll burn through a pack of AAs every few weeks. Over a year, that adds up to $50 to $100 and a lot of dead batteries in the trash. For occasional players, though, alkalines are perfectly fine—just keep a spare set in the drawer.
Rechargeable AA Batteries (NiMH): The Gamer's Choice
If you're gaming more than a few hours a week, nickel-metal hydride (NiMH) rechargeable batteries are the sweet spot. I've been using them for years, and honestly, I can't imagine going back to disposables.
The key advantages are hard to argue with:
- High capacity: Modern NiMH batteries pack serious energy. The Panasonic Eneloop Pro, for instance, offers 2550mAh, which translates to roughly 30 to 40 hours of controller time per charge.
- Low self-discharge: This is the game-changer. Older rechargeables would lose their charge sitting in a drawer for a month. Eneloop-style batteries retain about 85% of their charge after a year of storage. Grab them, pop them in, and they're ready.
- Hundreds of recharge cycles: A good set of NiMH batteries will last you years. Even at 500 cycles, that's potentially a decade of controller power.
Here's a quick comparison of popular options I've tested:
| Battery | Capacity (mAh) | Est. Game Hours | Price (4-pack) |
|---|---|---|---|
| Panasonic Eneloop Pro | 2550 | 35–40 | $25–30 |
| Amazon Basics | 2400 | 30–35 | $15–20 |
| Energizer Recharge | 2300 | 28–33 | $20–25 |
| Duracell Rechargeable | 2500 | 32–37 | $22–28 |
| One thing to note: you'll need a separate charger. A decent one runs $15 to $25, but it pays for itself within a few months of regular gaming. I recommend getting a charger with individual channel monitoring—it's worth the extra few dollars to avoid overcharging. |
Xbox One Controller Rechargeable Battery Pack: The Official Solution
Microsoft's official Play & Charge Kit takes a different approach. Instead of AA batteries, it uses a proprietary lithium-ion battery pack that slides into the same compartment, plus a charging cable.
The convenience factor is real: when the battery gets low, you just plug in the micro USB cable and keep playing while it charges. No swapping batteries, no charger to manage. The kit typically costs $25 to $35 and includes the battery pack plus a 9-foot cable.
Here's the thing, though—the Play & Charge Kit is also compatible with Xbox Series X|S controllers, so if you upgrade your console later, the battery carries over. That's a nice bit of future-proofing. The trade-off is that you can't hot-swap batteries. When the pack dies, you're tethered to a cable until it charges back up. With AA rechargeables, you can keep a second set charged and swap them in seconds.
Xbox One Controller Battery Replacement: A Step-by-Step Guide
Whether you're swapping out dead AAs or replacing the rechargeable pack, the process is straightforward. Here's exactly how to do it.
How to Replace AA Batteries in Your Controller
- Turn the controller over so the back is facing you.
- Press the small release tab on the top edge of the battery compartment cover and slide it off. It should come away cleanly—if it feels stuck, don't force it; check that you're pressing the tab fully.
- Remove the old batteries by pushing them toward the spring contacts and lifting them out.
- Insert the new batteries, matching the + and − symbols on the batteries to the diagrams inside the compartment. This is where people mess up—get the orientation wrong and the controller simply won't power on.
- Slide the cover back on until you hear it click into place.
That's it. The whole process takes about 30 seconds once you've done it a few times.
How to Replace the Rechargeable Battery Pack
If you're using the official Play & Charge Kit, the process is similar:
- Remove the battery compartment cover using the same tab-and-slide method.
- Lift out the battery pack—it should come out easily, but if it's snug, gently rock it side to side.
- Insert the replacement pack, ensuring the connector pins align with the contacts in the compartment.
- Replace the cover and connect the micro USB cable to charge.
One common issue I've encountered: the battery indicator light doesn't turn on when you plug in the cable. In most cases, this means the pack isn't seated properly. Remove it, reseat it firmly, and try again. If the light still doesn't appear, try a different cable—the included ones can wear out over time.
Battery Pack vs AA Batteries: Which Is the Best Xbox One Controller Battery Solution?
This is the question I get asked most, and the answer depends entirely on how you game.
A Side-by-Side Comparison
| Factor | AA Alkaline | AA Rechargeable (NiMH) | Official Play & Charge Kit |
|---|---|---|---|
| Upfront cost | $5–10 | $30–50 (with charger) | $25–35 |
| Long-term cost (2 years) | $100–200 | $0 (after initial) | $0 |
| Battery life per charge | 20–30 hours | 30–40 hours | 25–35 hours |
| Charging time | N/A | 4–6 hours | 3–4 hours |
| Convenience | Buy new ones | Swap batteries | Plug in cable |
| Environmental impact | High waste | Low | Low |
The Verdict for Different Types of Gamers
For most gamers, I recommend AA rechargeable batteries. They offer the best balance of cost, flexibility, and longevity. You can always fall back on alkalines in an emergency, and the upfront investment pays off within months.
For those who prefer a single integrated solution and don't mind being tethered to a cable occasionally, the Play & Charge Kit is excellent. It's particularly nice if you play at a desk where the cable is always within reach.
Standard alkaline batteries? Keep them for emergencies only. They're fine for the occasional player, but as a primary solution, they're the most expensive option over time.
Xbox One Controller Battery Life: Tips to Extend Playtime
Getting the most out of your batteries isn't just about choosing the right type—it's also about how you use your controller.
Optimizing Your Controller's Power Consumption
The biggest battery drain on the Xbox One controller is the vibration motors. Turning them off can extend battery life by 30 to 40 percent. Here's how:
- Open the Xbox Accessories app on your console.
- Select your controller.
- Toggle off the vibration option.
It's a trade-off—rumble adds immersion—but if you're in a long session and worried about battery, it's the single most effective setting you can change.
Keeping your controller's firmware updated also helps. Microsoft has released several updates over the years that improved power management, so make sure you're running the latest version.
And if you're playing near your console, consider using a wired connection. Plugging in a micro USB cable not only bypasses battery usage entirely but also reduces input latency. It's a win-win.
Emergency Solutions: When Your Batteries Die Mid-Game
We've all been there. The controller dies, and you're in the middle of something important. Here's what to do:
Grab a micro USB cable and plug the controller directly into your console. It'll power on instantly and work as a wired controller. No batteries needed, no waiting for a charge.
If you're using the Play & Charge Kit and you're away from a wall outlet, a portable power bank works perfectly. Just plug the controller into the power bank with a micro USB cable, and you can keep playing for hours.
Frequently Asked Questions
Can you use AAA batteries in an Xbox One controller?
No. The Xbox One controller is designed specifically for AA (LR6) batteries. AAA batteries are smaller in both length and diameter, so they won't make proper contact with the terminals. Attempting to use them with makeshift solutions like foil can damage the controller.
How long do AA batteries last in an Xbox One controller?
It depends on the battery type. Standard alkaline AA batteries typically last 20 to 30 hours. High-capacity NiMH rechargeables like the Eneloop Pro can last 30 to 40 hours per charge. Actual results vary based on vibration usage, headset connection, and other factors.
Do all Xbox controllers need batteries?
No. Standard Xbox One and Xbox Series X|S controllers require AA batteries or a battery pack. However, the Elite Series 2 controller has a built-in rechargeable battery that charges via USB-C. The original Xbox Elite controller also uses the standard AA configuration.
Is it better to use a battery pack or AA batteries for an Xbox controller?
For most gamers, AA rechargeable batteries are the better choice—they're cheaper over time, allow for instant battery swaps, and work across multiple devices. The Play & Charge Kit is better if you prefer the convenience of charging via cable and want a single integrated solution.
Conclusion
So, what batteries does an Xbox One controller take? The answer is simple: two AA (LR6) batteries or the official Play & Charge Kit. AAA batteries won't fit, and no amount of creative engineering will change that.
For most players, I'd steer you toward a set of quality NiMH rechargeable batteries—they're the best balance of cost, performance, and convenience. If you prefer a more streamlined setup, the Play & Charge Kit is a solid choice that'll carry you through to the next generation of consoles.
Whatever you choose, the key is to be prepared. Keep a spare set of batteries charged and ready, and you'll never have to scramble mid-boss-fight again.
What battery solution do you use for your Xbox controller? Share your experience in the comments below!
